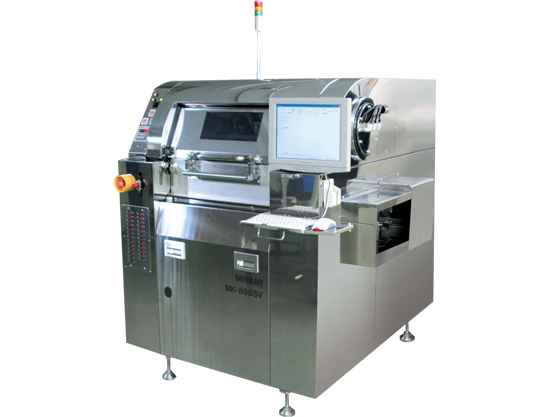

MK-888SV(MA)

Full automatic high speed screen printer with a visual recognition device.
It is a full spec machine capable of positioning multiple substrates simultaneously.

Movie of MK-888SV(MA) is here

Product Outline

  • Multiple substrates simultaneous printing function is added to the existing MK-888SV.
  • Printing on multiple substrates can be performed simultaneously as a batch in high accuracy.
  • It can handle BGA bump of Φ0.2mm, QFP with 0.3mm lead pitch and fine pattern with the world top class printing positioning repetitive accuracy (±0.015mm or less when image recognition is used).
  • Position of multiple substrates (2〜desired number) is corrected one by one by a work positioning manipulator.
  • Cartridge type detachable cleaning unit enables easy replacement of cleaning cotton.
  • The cleaning unit can be switched between cotton type and adhesive tape type by one action.
Type M LL
Screen frame size

(X)600×(Y)550mm
(T)25〜30mm

(X)650×(Y)550mm

(X)750×(Y)650mm
(T)25〜40mm
Accommodated PCB/substrate size

Minimum (X)50×(Y)50mm
(T)0.4〜2.5mm

Maximum (X)330×(Y)250mm

(Standard printing)
Minimum (X)100×(Y)100mm
(T)0.4〜2.5mm
Maximum (X)540×(Y)500mm

(Two stage solder thickness printing)
Minimum (X)100×(Y)100mm
(T)0.4〜2.5mm
Maximum (X)330×(Y)200mm

PCB/substrate conveyor height 900±50mm
Overall Size (D)1235×(W)1570
×(H)1572mm
(D)2080×(W)1570
×(H)1572mm
Weight 800kg 950kg
Repetitive positioning accuracy for printing ±0.015mm or less
Power Used AC200V 2KVA 50/60Hz
