Full spec machine with all necessary features

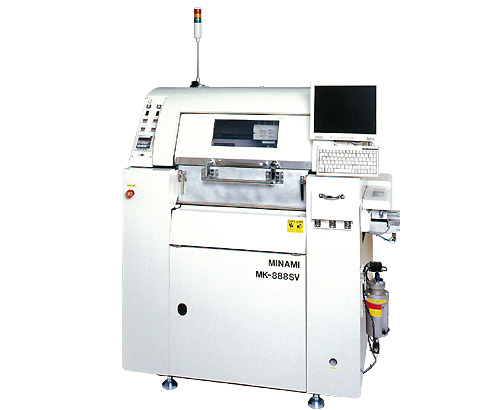

Fully automatic, high-speed screen printing machine with image recognition device

Product Outline

• Full spec machine with all necessary features.
• It is compatible to fine pattern, BGA bump of Φ0.2mm and QFP of 0.3mm lead pitch with the world's top class repetitive positioning accuracy (±0.015mm or less when using image recognition).
• Eight axes servo motors are used for a rotary squeegee version machine, and stability is secured for the basic operations where high accuracy is required. Moreover, the basic operational cycle time is shortened to 8 seconds (M Type) by making the linkage of each operation more closely and by software improvement.
• Because of simple operation and simple structure, high skill level is not required for the operator.
• The direction of PCB conveyor, line configuration (fixed side conveyer) and mask design standards can be freely selected at free of charge so that there is no impact to the user's equipment planning and the existing mask can be used. It can be connected to any type of mounters.
• Operator friendly "Windows XP" is used as the OS, and the language can be selected from Japanese, English and Chinese.
• By using the rotary squeegee (option), deterioration and the consumption amount of solder can be suppressed. It contributes to manufacturing of high-quality products and also to the cost reduction.
