MK-D11
General purpose high-spec printer
Product Outline
- High-speed 6sec/Cycle
High-speed distribution by 6sec/Cycle (Without printing)
This is realized by printing on the distribution line. - Repeatability accuracy ±0.015mm
- Open rotary squeegee method (Option)
- Not complex 2D inspection function (Solder inspection and mask opening inspection (Option)
- PCB clamping function in Z direction (Option)
| Materials | |
|---|---|
| PCB Size |
X：50〜510mm Y：50〜460mm Thickness：0.4〜6.0mm |
| Stencil Size | X:650mm×Y:550mm / 750×650 / 29in×29in |
| Performances | |
| Productivity | 6sec(Without printing) |
| Repeatability accuracy | ±0.015mm |
| Specifications | |
| Power supply utility | Single phase 200〜240V Frequency：50/60Hz |
| Used air utility | 0.49MPa：40L/min |
| Direction of setting work | Left→Right / Right→Left |
| Distribution line | From floor 900±20mm |
| UI language | Japanese / English / Chinese / Korean |
| Machine Weight | Approx. 850kg |
| Pring Direction | Front ⇔ Rear |
| Vision FOV | Approx. 8.8 x 6.6mm |
| Lay-Out | 1360mm(W) 1500mm(D) 1375mm(H) except tower/monitor |
| Option | |
| Solder Automatic supply (Jar of 500g) Open Rotary Squeegee Unit UPS Not complex 2D inspection PWB Warpage correction L-size PCB waiting conveyor / When selecting：W=1620mm Z Clamp mechanism Table backup PWB Vacuum |
|

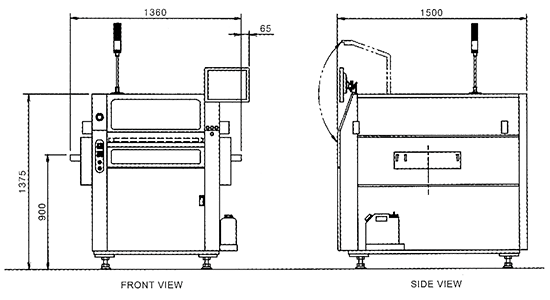

Outside Drawing
