MK-D13
Multi alignment High-speed printer
Features
- Multi Alignment Max：50pcs/Tray
Simultaneous printing of multiple pieces of individual PCB on tray. - High Accuracy ±0.025mm
Position correction of each piece by image recognition. - High-speed UPH：1000 or over＊At 50pcs PCB on the tray
Approx 1.4 times faster processing speed than conventional model (maximum 24 pcs) - Rotary squeegee method (Option)
Product Outline
| Materials | |
|---|---|
| Tray size |
310 x 160mm |
| Number of the PCB | 2 ~ 50 Piece |
| Minimum size of PCB | 10 x 10mm |
| Stencil size | X:650mm x Y:550mm |
| Performances | |
| Productivity | UPH 1,000 or over |
| Repeatability | ±0.025mm |
| Specifications | |
| Direction of Setting work | Left→Right / Right→Left |
| Pring Direction | Front ⇔ Rear |
| Distribution line | From floor 900±20mm |
| UI language | Japanese / English / Chinese / Korean |
| Power supply utility | Single phase 200V ~ 240V Frequency 50/60Hz |
| Machine Weight | Approx.900kg |
| Lay out | 1870（W）×1287（D）×1460（H）mm |
| Option | |
| Solder Automatic supply (Jar of 500g) Rotary squeegee UPS Table backup PWB Vacuum |
|

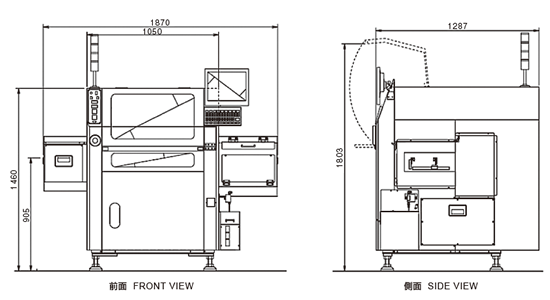

Outside Drawing
