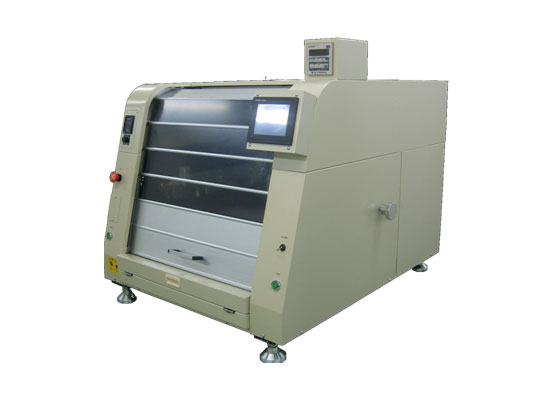

MK-MINI
Precision semi-automatic screen printer
Product Outline
- Simple positioning mechanism is applicable to both high-mix low-volume production to high volume production.
- The squeegee drive unit employs AC induction motor and belt enabling speed control within the range of 10〜90mm/sec.
- Floating squeegee helps to realize uniform solder amount and good printing quality.
- Because AC servo motor is used for the printing table, adjustment can be made for the board thickness, clearance, stencil separation distance and speed.
- High quality is realized at low price.
- Selection can be made from various models.
- MINI-Ⅰ：Model where the squeegee travels back and forth.
- MINI-Ⅱ：Model where the squeegee travels left and right.
| Screen frame dimensions | (X)550×(Y)650mm, center reference |
|---|---|
| Applicable work dimensions | Minimum (X)50×(Y)50mm Maximum (X)330×(Y)250mm |
| Work fixing method | Vacuum sucking (table dimension: 400×320mm) |
| Metal stencil fixing method | Cylinder clamp (adjustable range: X, Y direction ±5 or less, θ direction ±1.5°） |
| Power source (consumption) | AC200V（0.5KVA） |
| Used air (consumption) | 0.49Mpa or higher (approx. 40NL/min) |
| Machine dimension | (D)1100×(W)910×(H)749mm (excluding signal tower) |
| Machine weight | 350kg |
